# Created: 20250104

import pyutil as pyu
pyu.get_local_pyinfo()

'conda env: ml312-2024; pyv: 3.12.7 | packaged by Anaconda, Inc. | (main, Oct  4 2024, 13:27:36) [GCC 11.2.0]'

print(pyu.ps2("yfinance pandas matplotlib"))

yfinance==0.2.51
pandas==2.2.3
matplotlib==3.9.3

import yfinance as yf
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

# Step 2: Calculate Schaff Trend Cycle (STC)
def calculate_stc(data, fast_period=12, slow_period=26, signal_period=9, stoch_period=10, stoch_ema_period=3):
    # MACD Line and Signal Line
    data['Fast EMA'] = data['Close'].ewm(span=fast_period, adjust=False).mean()
    data['Slow EMA'] = data['Close'].ewm(span=slow_period, adjust=False).mean()
    data['MACD Line'] = data['Fast EMA'] - data['Slow EMA']
    data['Signal Line'] = data['MACD Line'].ewm(span=signal_period, adjust=False).mean()

    # Stochastic of MACD
    data['Lowest MACD'] = data['MACD Line'].rolling(window=stoch_period).min()
    data['Highest MACD'] = data['MACD Line'].rolling(window=stoch_period).max()
    data['Stochastic MACD'] = ((data['MACD Line'] - data['Lowest MACD']) /
                               (data['Highest MACD'] - data['Lowest MACD'])) * 100

    # STC
    data['STC'] = data['Stochastic MACD'].ewm(span=stoch_ema_period, adjust=False).mean()

    return data

[*********************100%***********************]  1 of 1 completed

def show_graph(symbol):

    # Step 1: Download historical data
    start = "2020-01-01"
    end = "2023-12-31"
    data = yf.download(symbol, start=start, end=end)

    # Apply STC calculation
    data = calculate_stc(data)

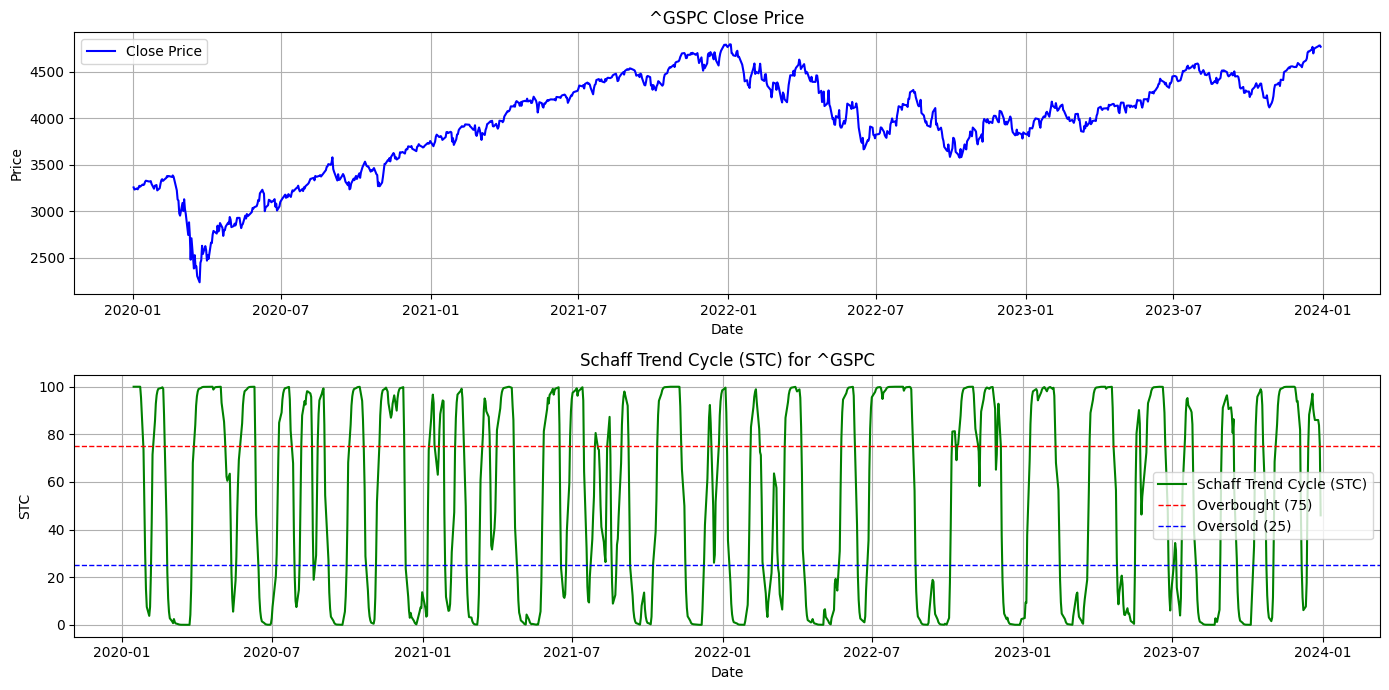

    # Step 3: Plot Close Price and STC
    plt.figure(figsize=(14, 7))

    # Plot Close Price
    plt.subplot(2, 1, 1)
    plt.plot(data['Close'], label='Close Price', color='blue')
    plt.title(f'{symbol} Close Price')
    plt.xlabel('Date')
    plt.ylabel('Price')
    plt.legend()
    plt.grid(True)

    # Plot STC
    plt.subplot(2, 1, 2)
    plt.plot(data['STC'], label='Schaff Trend Cycle (STC)', color='green', linewidth=1.5)
    plt.axhline(75, color='red', linestyle='--', linewidth=1, label='Overbought (75)')
    plt.axhline(25, color='blue', linestyle='--', linewidth=1, label='Oversold (25)')
    plt.title(f'Schaff Trend Cycle (STC) for {symbol}')
    plt.xlabel('Date')
    plt.ylabel('STC')
    plt.legend(loc='best')
    plt.grid(True)

    plt.tight_layout()
    plt.show()

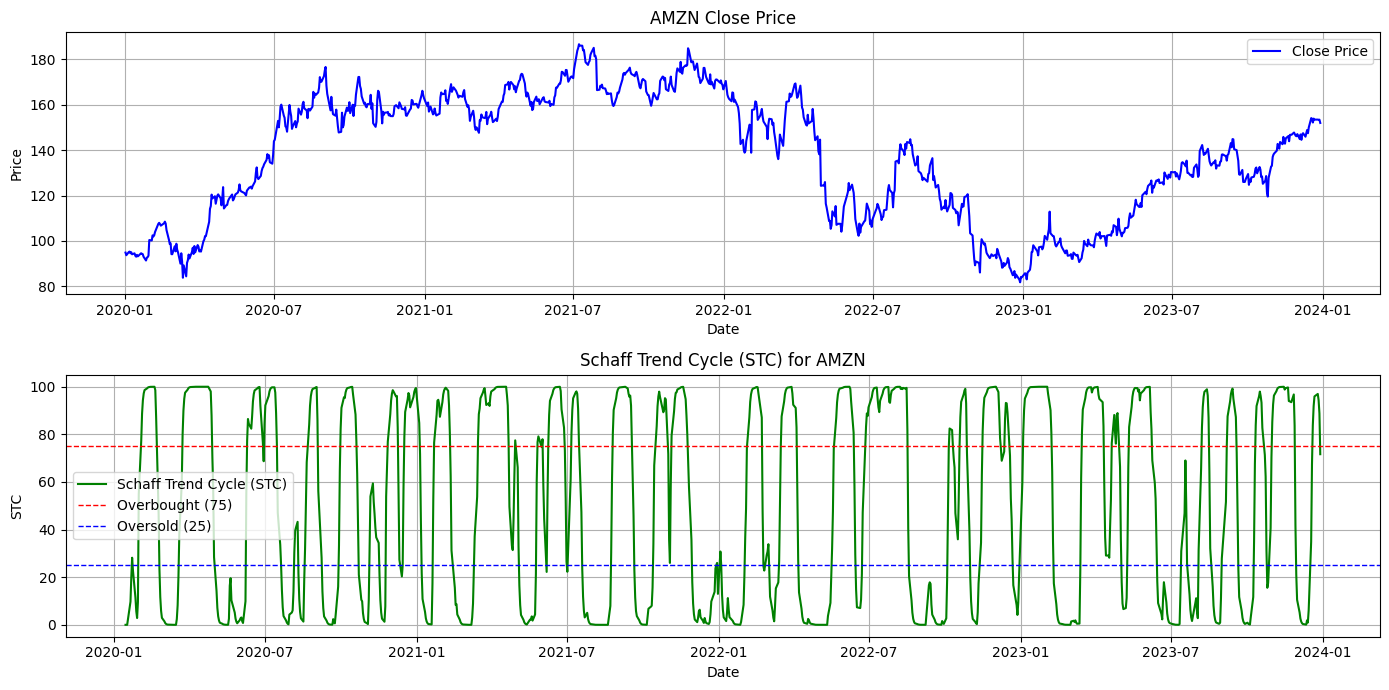

show_graph("AMZN")

[*********************100%***********************]  1 of 1 completed
